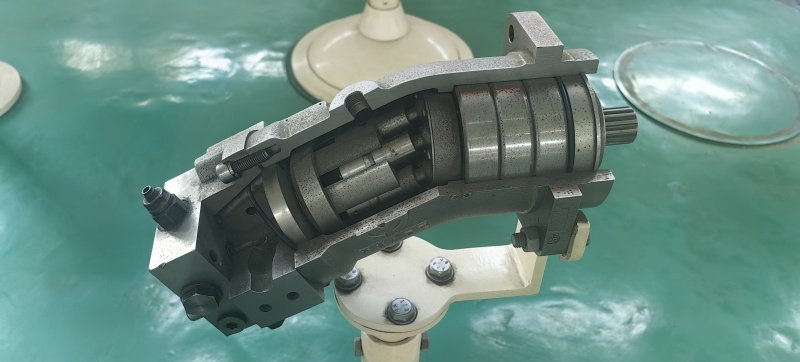

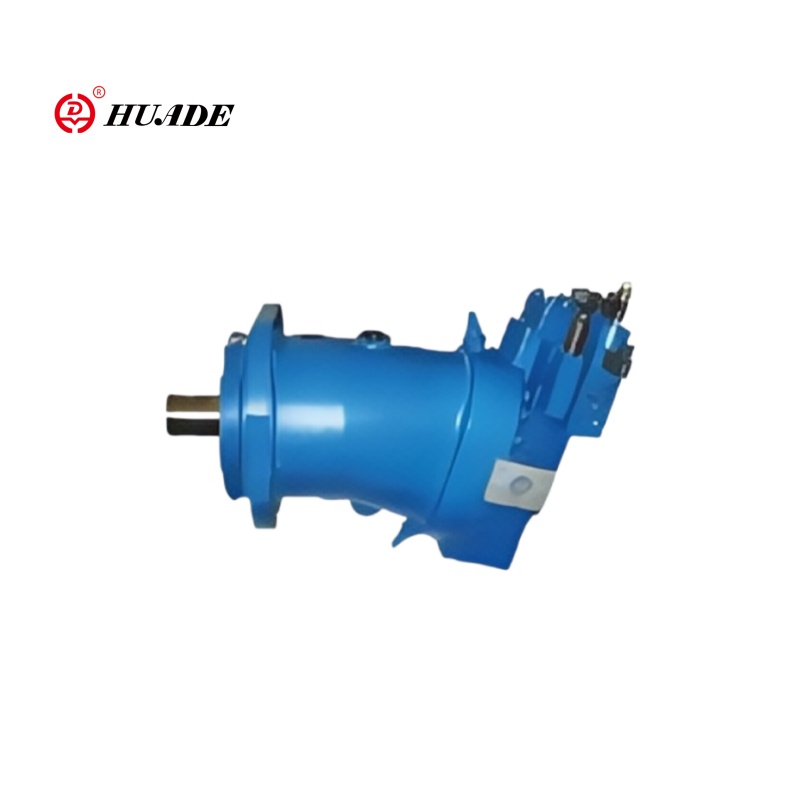

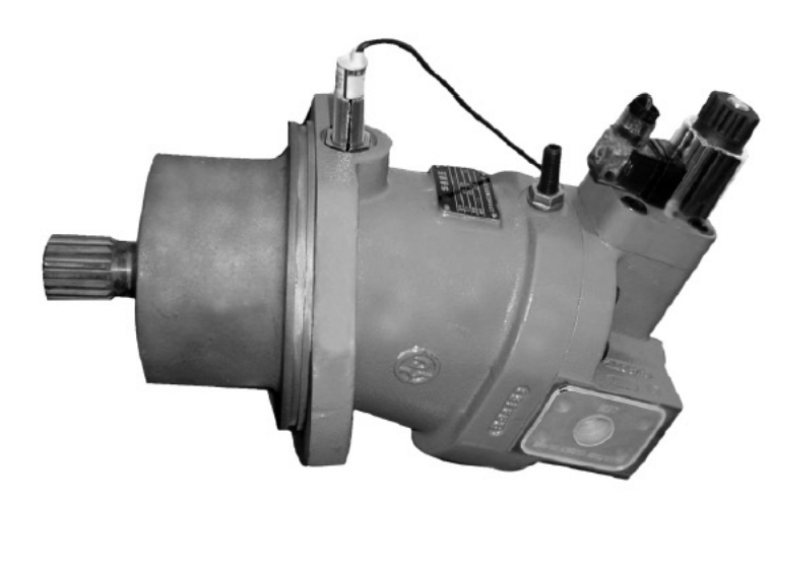

Axial piston variable motor A6VE is equipped with a standard axial tapered piston rotary group of benta xis design. Hydrostatic plug-in motors are intended primarily for installationl in mechanical gearboxes, e.g.track drive gear boxes. The desing of the A6VE motor with the mounting flange in the center of the housing allows it to be almost fully integrated into a mechanical gearbox. The casting shell of motor A6VE has been tested for high pressure tightness and is leak-proof.
| Pressure at port A or B | |
| Nominal pressure | Pn=31.5MPa |
| Peak pressure | Pmax=35Mpa |
| Maximum permissible leakage oil pressure ( at Port T) | Pabs=0.2Mpa |
| Fluid temperature range | |
| tmin | -25℃ |
| tmax | +80℃ |
| Viscosity range | |
| umin | 10mm2/s |
| umax | 1000mm2/s |
| Optimum operating viscosity | |
| Vopt | 16-36mm2/s |
Features:
▶Complete unit, ready assembled and tested,
▶Easy assembly simply plug-in to mechanical gearboxes.
▶No installation tolerances to consider
Application:
The variable displacement motor A6VE is an axial piston variable displacement motor, a core component in the field of hydraulic transmission, known for its high efficiency, high power density and adjustable displacement. Axial piston variable motor A6VE is widely used in travel drives of excavators, loaders, crawler cranes, combine harvesters/tractors, mining trucks/rock drills, etc.

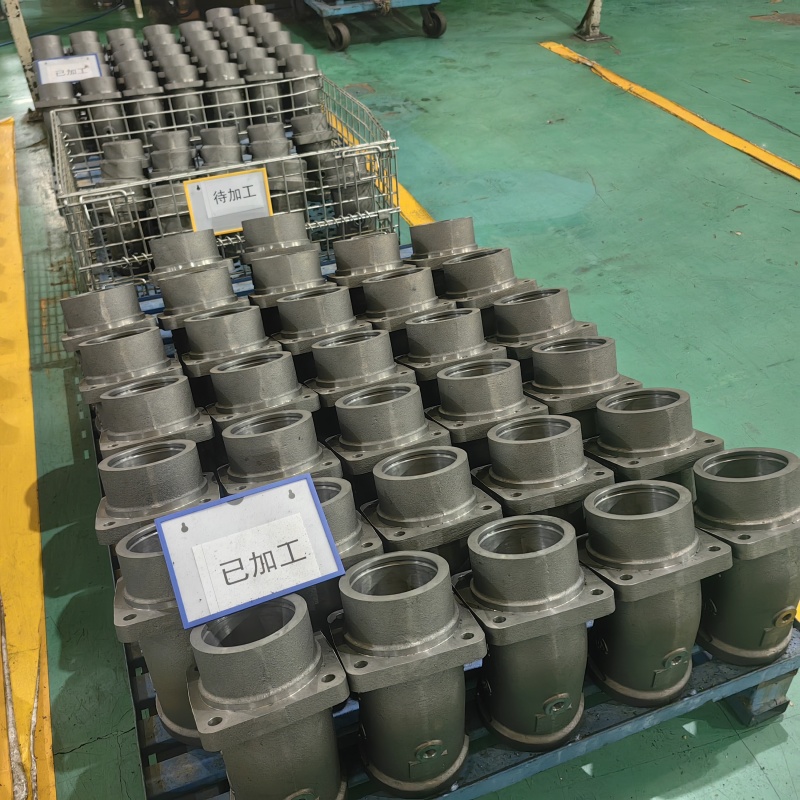

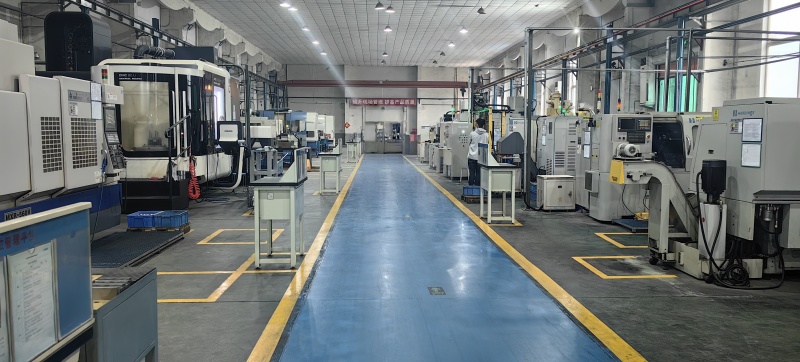

Production site
