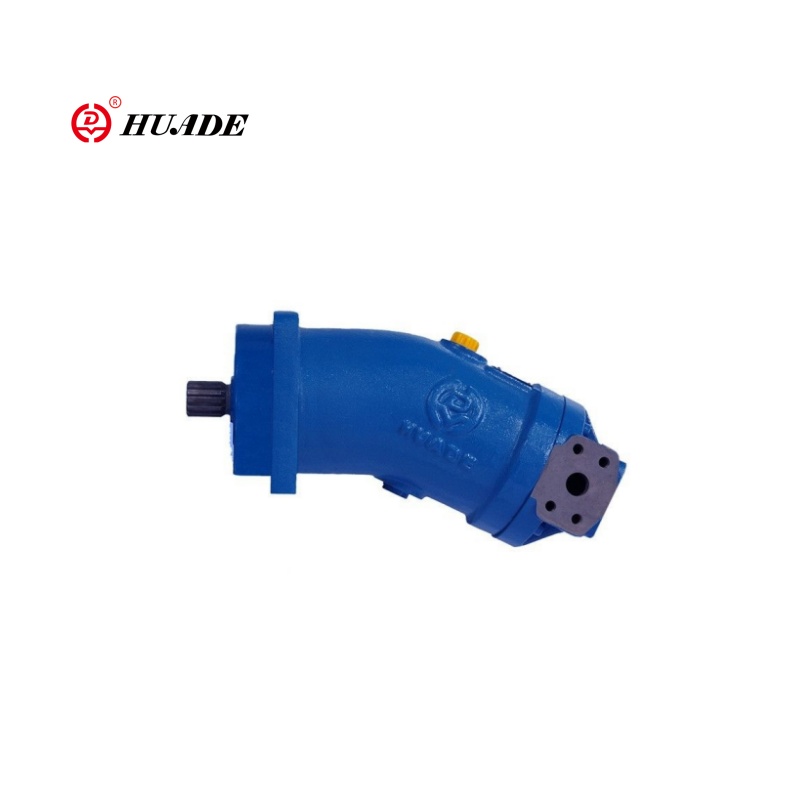

A2FE motor is a helical fixed displacement motor, suitable for hydraulic drive systems that require stable speed and high torque output. Huade’s axial piston fixed motor A2FE has a higher cost performance and is suitable for projects with limited budgets. Huade A2FE motor can replace Rexroth in most medium and high pressure hydraulic systems. It is suitable for general industry, agricultural machinery and maintenance market.
| Pressure at port A or B | |
| Nominal pressure | Pn=35Mpa |
| Peak pressure | Pmax=40Mpa |
| The sum of the pressure at port A or B must not exceed 70Mpa | |
| Maximum permissible case pressure | |
| P | 0.2MPa |
| Fluid Temperature Range | |
| tmin | -25℃ |
| tmax | +80℃ |
| Viscosity Range | |
| Vmin | 10mm2/s |
| Vmax | 1000mm2/s |
| Optimum Operating viscosity | |
| Vopt | 16-36mm2/s |
Features:

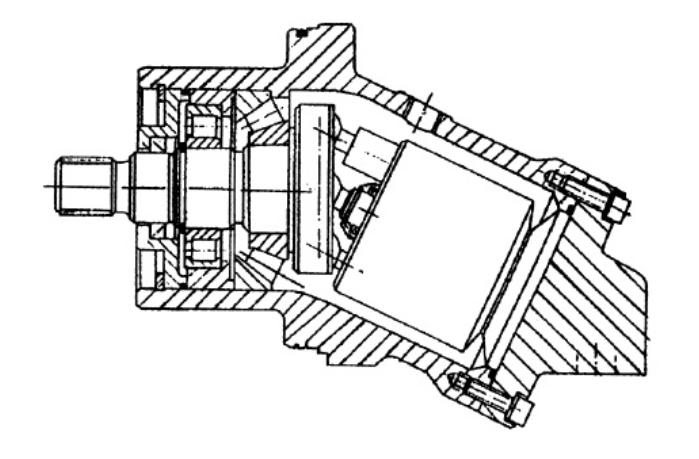

▶The design of the motor with the mounting flange in center of the housing allows if to be almost fully integrated into a mechanical gear box to give an extremely compact unit.
▶No installation tolerances to consider.
▶Easy assembly,simply plug-in to mechanical gearboxes.
Application:
Huade’s axial piston fixed motor A2FE is suitable for production lines, test benches, agricultural machinery (such as tractors, harvesters), ships and port machinery, etc.

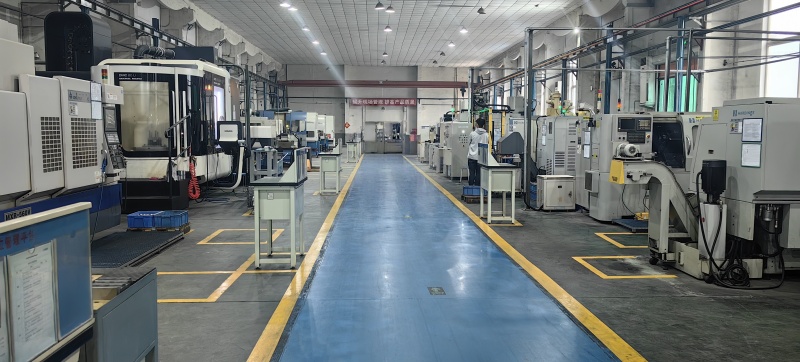

Production site
Huade Hydraulic has more than 750 production equipment from all over the world, in order to provide customers with more high-quality hydraulic valves and pumps.
